SDL3 Hellope Example

Showcase
1

Decided to dig into SDL3 some. Figured I share what I’ve learned so far. Hopefully this can help someone smarter than me get started so I can learn something from them. :slight_smile:

This shows how to initialize sdl3, load a renderer driver, handle events, render color, and render debug text.

I’m currently working in Linux using Wayland, though the below example should work for most environments. I did find in my readings that to use direct3d, a directx device must be created with SDL3 before it is available. I have not yet gone down that rabbit hole. I still added direct3d to the driver priority list I’m using below, just in case it works magically in Windows or something. When I get around to reinstalling Windows (it’s broken currently), I’ll try it.

package sdl3_example

import sdl "vendor:sdl3"
import "core:fmt"
import "core:math"

// Available render drivers
@require_results
get_driver_names :: proc() -> (drivers: []cstring, count: i32) {
	count = sdl.GetNumRenderDrivers()
	drivers = make([]cstring, count)
	for d in 0 ..< count {
		drivers[d] = sdl.GetRenderDriver(d)
	}
	return
}

// Return first driver found in priority list or empty cstring
set_driver_by_priority :: proc(priority_list: []cstring) -> (driver: cstring) {
	driver_list, _ := get_driver_names()
	defer delete(driver_list)
	for priority in priority_list {
		for d in driver_list {
			if d == priority {
				return priority
			}
		}
	}
	return
}

// draw something for funs
Triangle :: struct {v0, v1, v2: sdl.FPoint}
sierpinksi :: proc(r: ^sdl.Renderer, t: Triangle, depth: int) {
	if depth == 0 { // draw at depth
		t_raw := [4]sdl.FPoint{t.v0, t.v1, t.v2, t.v0}
		sdl.RenderLines(r, raw_data(t_raw[:]), 4)
	}
	if depth > 0 { // recurse to depth
		sierpinksi(r, {t.v0, (t.v0 + t.v1) / 2, (t.v0 + t.v2) / 2}, depth - 1) // top
		sierpinksi(r, {t.v1, (t.v1 + t.v2) / 2, (t.v0 + t.v1) / 2}, depth - 1) // left
		sierpinksi(r, {t.v2, (t.v0 + t.v2) / 2, (t.v1 + t.v2) / 2}, depth - 1) // right
	}
}

main :: proc() {

	// Not required, but good practice since many applications will use this to display "about" info.
	meta_ok := sdl.SetAppMetadata("Example Renderer", "1.0", "https://forum.odin-lang.org")

	// Initialize SDL
	sdl_ok := sdl.Init({.VIDEO})
	defer sdl.Quit()

	if !meta_ok || !sdl_ok {
		fmt.eprintln("Failed to initialize")
		return
	}

	// set driver based on priority per OS type
	driver: cstring
	when ODIN_OS == .Linux {
		driver = set_driver_by_priority({"vulkan", "gpu", "opengl", "software"})
	} else when ODIN_OS == .Windows {
		driver = set_driver_by_priority({"direct3d12", "direct3d11", "direct3d", "gpu", "opengl", "software"})
	} else when ODIN_OS == .Darwin { // metal supported on macOS 10.14+ and iOS/tvOS 13.0+
		driver = set_driver_by_priority({"metal", "gpu", "opengl", "software"})
	} else {
		driver = set_driver_by_priority({"gpu", "opengl", "software"})
	}

	if driver == nil {
		fmt.eprintfln("%s %v", "Unable to load driver from priority list for", ODIN_OS)
		return
	}

	// note: resizing window repeatedly exposes nvidia bug
	// https://github.com/libsdl-org/SDL/issues/14278
	// check configured limit of file descriptors in os with command line: ulimit -n
	window   := sdl.CreateWindow("Example Renderer", 640, 480, {.RESIZABLE})
	renderer := sdl.CreateRenderer(window, driver)
	sdl.SetRenderLogicalPresentation(renderer, 640, 480, .LETTERBOX)

	defer sdl.DestroyWindow(window)
	defer sdl.DestroyRenderer(renderer)

	// Enable VSync
	vsync_ok := sdl.SetRenderVSync(renderer, 1)
	if !vsync_ok {
		fmt.eprintln("Failed to enable VSync")
	}

	// Some variables for main loop
	display_id      := sdl.GetDisplayForWindow(window)
	display_mode    := sdl.GetCurrentDisplayMode(display_id)
	refresh_rate    := display_mode.refresh_rate
	vsync_enabled   := true
	fps_cap_enabled := true
	fps_target      := 60
	s_depth         := 5
	fps: f64

	color: sdl.FColor
	color_paused: bool

	// some data for printing debug info
	drivers, _ := get_driver_names()
	defer delete(drivers)

	controls := [][]cstring {
		{"Quit",           "Q", "ESC"},
		{"Pause Color",    "P", "LMB"},
		{"Toggle Vsync",   "V", ""},
		{"Toggle FPS Cap", "F", ""},
		{"Triangle Depth", "0", "to 9"},
	}

	// Main loop
	main_loop: for {

		// Get counter before whole frame
		frame_start := sdl.GetTicksNS()

		// Handle events
		for e: sdl.Event; sdl.PollEvent(&e); /**/ {
			#partial switch e.type {
			case .QUIT:
				break main_loop
			case .WINDOW_CLOSE_REQUESTED:
				break main_loop
			case .KEY_UP:
				switch e.key.key {
				case sdl.K_0..=sdl.K_9:
					s_depth = int(e.key.key - 0x00000030)
				case sdl.K_P:
					color_paused = !color_paused
				case sdl.K_ESCAPE:
					break main_loop
				case sdl.K_Q:
					break main_loop
				case sdl.K_V:
					vsync_enabled = !vsync_enabled
					sdl.SetRenderVSync(renderer, vsync_enabled ? 1 : sdl.RENDERER_VSYNC_DISABLED)
				case sdl.K_F:
					fps_cap_enabled = !fps_cap_enabled
				}
			case .MOUSE_BUTTON_UP:
				switch e.button.button {
				case sdl.BUTTON_LEFT:
					color_paused = !color_paused
				}
			}
		}

		// Smoothly change color on each loop if not paused
		if !color_paused {
			now    := f64(frame_start) / 1000000000.000 // convert to seconds
			color.r = f32(0.500 + 0.500 * sdl.sin(now))
			color.g = f32(0.500 + 0.500 * sdl.sin(now + math.PI * 2 / 3))
			color.b = f32(0.500 + 0.500 * sdl.sin(now + math.PI * 4 / 3))
			color.a = sdl.ALPHA_OPAQUE_FLOAT // opaque
		}

		// Set new background color
		sdl.SetRenderDrawColorFloat(renderer, color.r, color.g, color.b, color.a)
		sdl.RenderClear(renderer)

		// Set color compliment of background and draw triangle(s)
		sdl.SetRenderDrawColorFloat(renderer, 1 - color.r, 1 - color.g, 1 - color.b, 255)
		t := Triangle{{366, 20}, {112, 460}, {620, 460}}
		sierpinksi(renderer, t, s_depth)

		// Set font color and some debug text
		r: f32 // mini row iterator
		row :: proc(row: ^f32, height: f32) -> f32 { row^ += height; return row^ }
		sdl.SetRenderDrawColor(renderer, 0, 0, 0, 255)
		sdl.RenderDebugText(renderer, 10, row(&r, 10), "hellope world!")
		sdl.RenderDebugText(renderer, 10, row(&r, 20), fmt.ctprintf("%-16s%v", "Triangle Depth:", s_depth))
		sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%v", "Color Paused:", color_paused))
		sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%v", "VSync Enabled:", vsync_enabled))
		sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%v", "Refresh Rate:", refresh_rate))
		sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%v", "FPS Capped:", fps_cap_enabled))
		sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%i", "FPS Target:", fps_target))
		sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%.2f", "FPS Current:", fps))
		sdl.RenderDebugText(renderer, 10, row(&r, 20), "Found Drivers:")
		for d in drivers {
			sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%s %s", d, d == driver ? "(Loaded)":""))
		}
		sdl.RenderDebugText(renderer, 10, row(&r, 20), "Controls:")
		for c in controls {
			sdl.RenderDebugText(renderer, 10, row(&r, 10), fmt.ctprintf("%-16s%-2s%s", c[0], c[1], c[2]))
		}

		// free context.temp_allocator from use of fmt.ctprint
		free_all(context.temp_allocator)

		// Present renderer
		sdl.RenderPresent(renderer)

		// Get counter after whole frame
		frame_end := sdl.GetTicksNS()

		// Cap fps if enabled
		npf_target := u64(1000000000 / fps_target) // nanoseconds per frame target
		if fps_cap_enabled && (frame_end - frame_start) < npf_target {
			sleep_time := npf_target - (frame_end - frame_start)
			sdl.DelayPrecise(sleep_time)
			frame_end = sdl.GetTicksNS() // Update frame_end counter to include sleep_time for fps calculation
		}

		// update fps tracker
		fps = 1000000000.000 / f64(frame_end - frame_start)
	}
}
5 Likes
2

That’s a very good staring point I think :slight_smile:

Why not uploading to github as “odin-sdl3-demo” ?

I actually did the same thing but on raylib across all languages I want to test :smiley:

1 Like
3

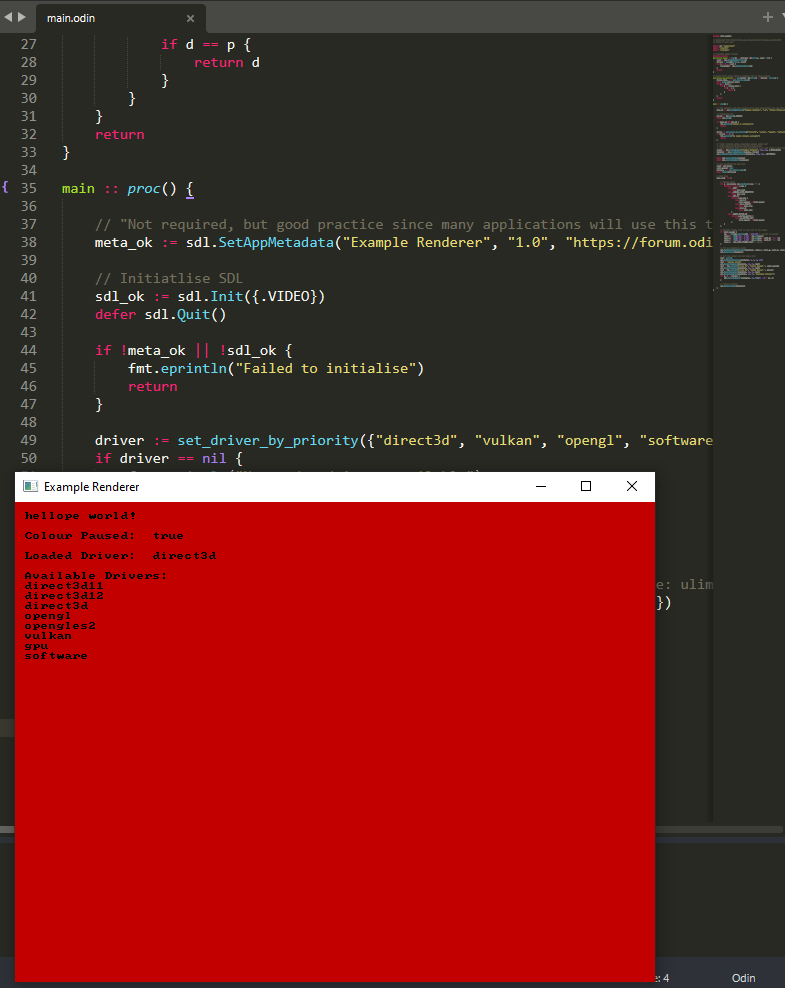

Made an account to say: I copied it verbatim and it runs perfectly on my Win10 machine:

image785×988 40.2 KB

Great work!
(I am absolutely not smarter than you)

4

Thanks for feedback. I’ve updated the above example to include fps tracking, fps target capping, and vsync. Check that out. It will prevent SDL3 from running wild and pegging CPU usage to 100%.

I’ll submit this example to the Odin github after I’ve decide if/how I’ll add driect3d for linux to the example.

1 Like
5

I think this example is now complete. Not surprisingly, Direct3d in Linux is only possible through wine, so I did not add that.

Updated:
Drawing some triangles for funs.
OS check for setting priority list. At the top of the list for each is: vulkan for Linux, direct3d for Windows, metal for Mac 10.14+, and gpu or opengl for all others. Of course, you can modify the priority lists in the code to suit your needs. Note that shaders and textures will work differently depending on driver/OS.

Before I submit this to the github, could anyone try this on Mac and Windows and verify it works?

6

You can use sdl + bgfx for gpu driver abstraction.
